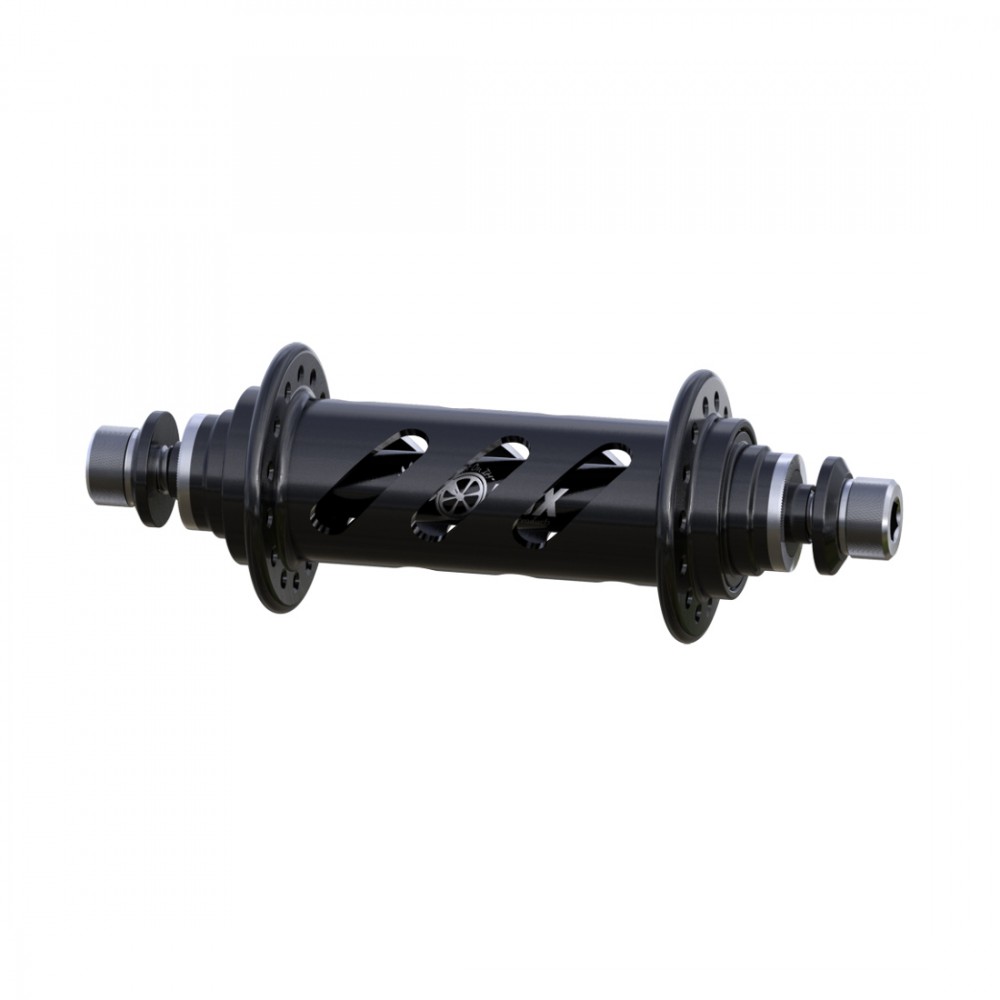

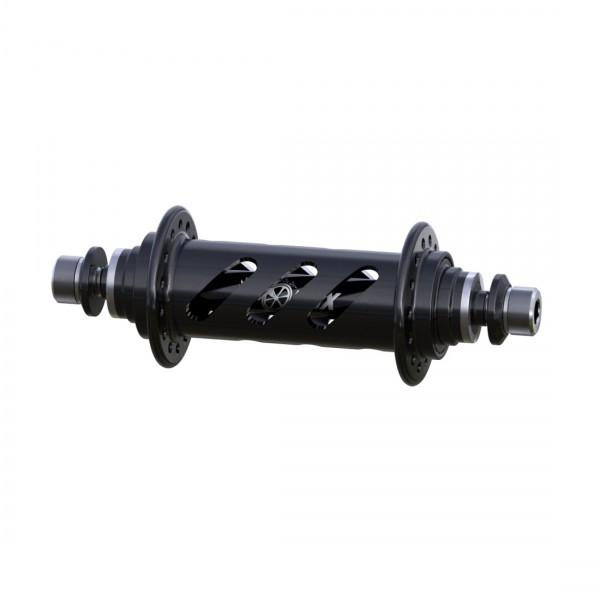

ONYX BMX OHM 100/8MM BOLT-ON HELIX FRONT HUB

No reviews at the moment

Bolt-on BMX hubs are designed to work in conjunction with Chain tensioner(s) and have a MAX bolt torque of 15 Nm.

  • Weight: 5.1 oz / 145 g
  • Hub Type: Front
  • Axle Width - mm: 100
  • Axle Diameter - mm: 10
  • Spoke Count: 24 or 28
  • Attach Style: Bolt-on
  • Hub Shell Style: Helix Cut-out
  • Bolts: Stainless steel orTitanium (option)
  • Spoke Tension - Max kgf: 120

Option : Upgrade to hybrid ceramic bearings and titanium bolts.
Reduces OHM front hub weight by 0.55 oz (15.5 grams).
(+30$)

All ONYX orders are custom orders made to your specifications when placed and are final and non returnable items. Please choose your options carefully and double check your build! ONYX Hub orders will ship direct to you from ONYX, once complete, if you are ordering in the USA. If you are ordering and shipping to outside of the USA, the hubs will ship to BRG in California first and then will be sent to you with the rest of your order.

Please note, ALL HUB orders, no matter the color from ONYX are made to order and currently are on a production delay of up to 4-6 weeks to complete.

$100.00
Color
Spoke Count
HUB OPTION
OHM100-8-24-STD
Quantity
In-Stock

Availability
Made to order
View Combination List

Payment method available

Manufactured by

ONYX

Shipped by

Shipped by ONYX RACING PRODUCTS

Note: This item will be shipped to you direct from the Manufacture listed, if you are located in the USA. This may take a few extra days to ship and will ship separately to you if you are ordering other items from different brands.

Real Stock - Most in stock items shipped by BRG (as listed) ready to ship within 24hrs during Monday-Thursday. Inventory updated daily at 7am Pacific. Drop Ship items & Items on Demand/Built to order are noted for additional shipping times.
Fast Delivery - Items usually are out for Delivery to you in 2-5 business days (USA & In Stock Items). Free shipping (continental US parts orders) over $150.
Secure Payments - Payment by credit card SSL STRIPE or Paypal account. Online payment securely for Visa or Mastercard, Apple Pay, & Amazon Pay methods options also available.
Satisfied or Refund - If the product isn’t what you needed/expected You have 5 days from receipt of your order to return. Please see return policy for all info. Sale items and Clothing are final sales.

More Description

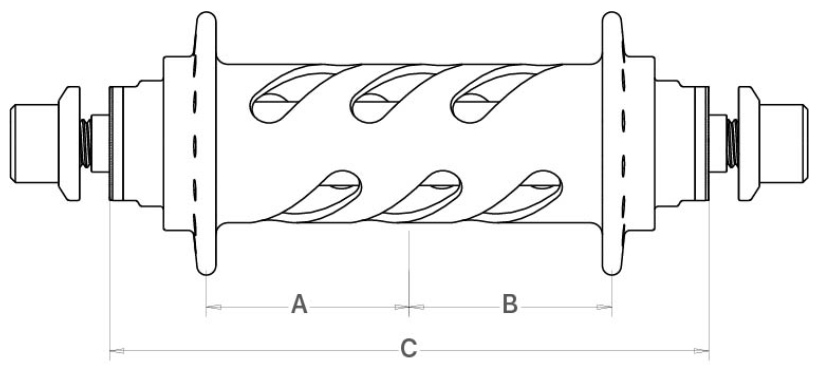

A - Hub Center To Flange Center, Non-Drive Side (mm) 33.84mm
B - Hub Center To Flange Center, Drive Side (mm) 33.84mm
C - Axle Width (mm) 100mm
Spoke Hole Circle Diameter, Drive Side (mm) 33.81mm
Spoke Hole Circle Diameter, Non-Drive Side (mm) 33.81mm
Spoke Hole Counts 24, 28
Spoke Tension 120kgf Max

Product Details

OHM100-8-24-STD
